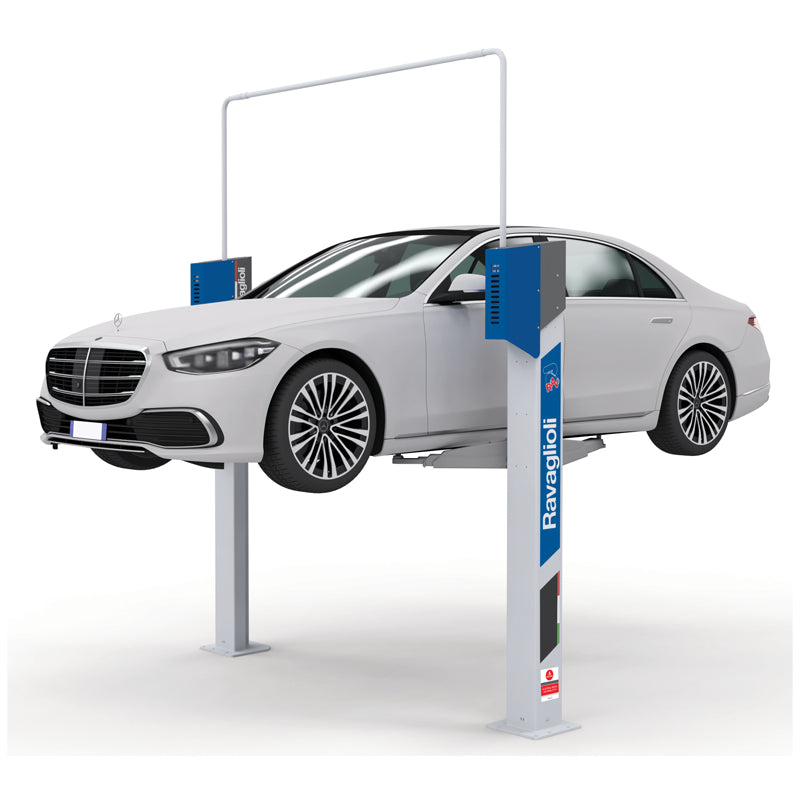

3.2t Baseless Screw 2 Post Electro Mechanical Lift KPX32

• Truly asymmetric columns designed to optimise the drive through and footprint

• Internal carriages running on lubricated sliding guides, protected from the external environment, ensures a longer life to the sliding elements

• 3-stage arms with quick fit and telescopic rubber pads

• Equipped with an acoustic anti toe trap system

• Solid automatic arm locking.

• The geometry of the arms has been designed to lift from microcars to long wheel base sedan.

• Max. lifting height 2,000mm

• Lifting time 42 seconds

• Min. pad height 96mm

• Max. pad height 130mm

• Column height 3,223mm

• Drive-through width 2,372-2,472mm

• Min. ceiling standard height 4,025mm

• Adjustable height - suits low roof applications

• Arm layout asymmetrical

• Min. front arm length 555mm

• Max. front arm length 1100mm

• Min. rear arm length 805mm

• Max. rear arm length 1,200mm

• Driving power 2x2.6kW

• Width 3,250-3,350mm

• Height 4,025mm
