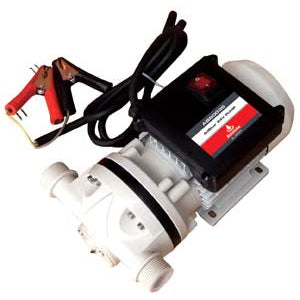

AdBlue EL Series AdBlue® 24V Pump AB80035

The AB80035 AdBlue® 24V pump is a self priming diaphragm pump that is capable of continuous operation and is protected against thermal overload with self resetting function
Capable of flow rates of up to 32 L/min, the AB80035 AdBlue® 24V pump has an operating speed of 3,000rpm at 26psi (1.6 bar) with a suction height of 3 metres
The AB80035 from Alemlube is the ideal hard working 24V pump for AdBlue® transfer applications when 240V power is unavailable
24V DC motor: 150W
Self priming diaphragm pump
Flow rates of up to 32 L/min
Polypropylene pump housing, EPDM diaphragm, Viton seals
1" BSP inlet and outlet
Suction height of 3m
1.8m power cable with clamps
Maximum supply pressure of 26psi (1.6 bar)
Continuous operation duty cycle
Power consumption of 12 ampere/hour
Also suitable for the transfer of organic acids, detergents and a variety of water soluble inorganic chemicals
