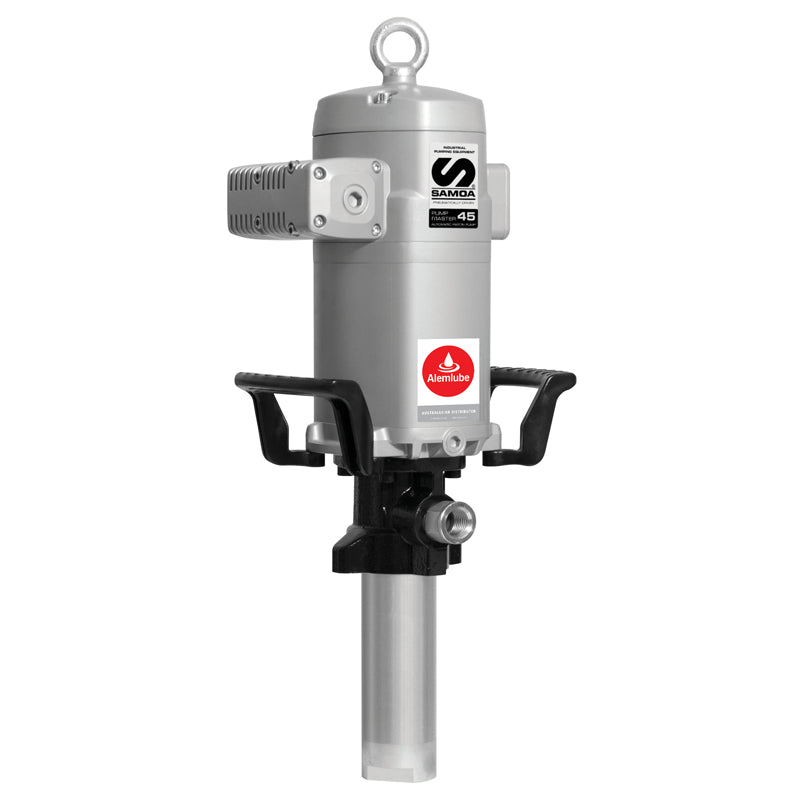

Samoa Heavy Duty 6:1 ratio Oil Stub Pump 536630

• Pump pressure ratio of 6:1

• Flow rates of up to 95L/min

• Air pressure operating range: 20 to 170 psi (1 to 12 bar)

• Handles synthetic/mineral engine oils, hydraulic oil, gear oil and transmission fluid

• Air consumption: 830 Nl/min (29 scfm)

• Delivery at 80cpm 25L/min

• Maximum fluid outlet pressure: 1,020psi (72 bar)

• Air motor effective diameter: 115mm

• Air motor stroke: 100mm

• Air inlet 1/2" BSP(f)

• Fluid inlet 1-1/2" BSP(f) / Fluid outlet 3/4" BSP(f)

• Wetted & seal materials: cast iron, hard chrome steel, steel, polyurethane & NBR

• Noise level: 80dB

• Total pump height: 702mm (pump tube length of 200mm)

• Weight: 17kg
