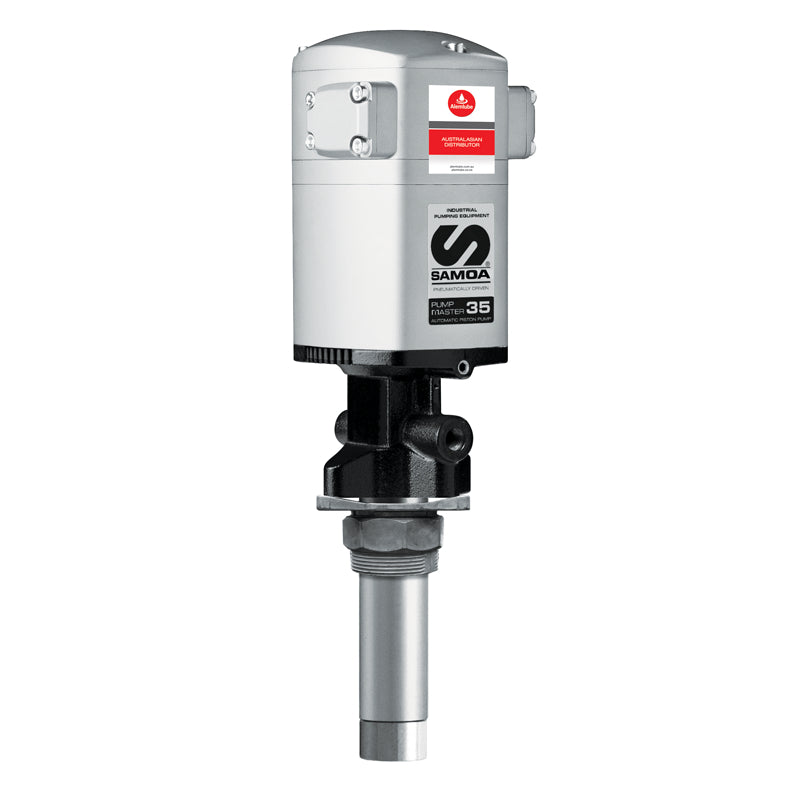

Samoa Heavy Duty 8:1 ratio Oil Stub Pump 535830

• Pump pressure ratio of 8:1

• Flow rates of up to 17L/min

• Air pressure operating range: 30 to 175 psi (2 to 12 bar)

• Handles synthetic/mineral engine oils, hydraulic oil, gear oil, transmission fluid and corrosion protection fluids

• Air consumption: 350 Nl/min (12.4 scfm)

• Maximum fluid outlet pressure: 1,400psi (96 bar)

• Air motor effective diameter: 80mm

• Air motor stroke: 80mm

• Air inlet 3/8" BSP(f)

• Fluid inlet 1" BSP(f) Fluid outlet 1/2" BSP(f)

• Wetted & seal materials: cast iron, hard chrome steel, steel, polyurethane and NBR

• Noise level: 80dB

• Total pump height of 487mm (pump tube length of 200mm)

• Weight: 6.8kg
