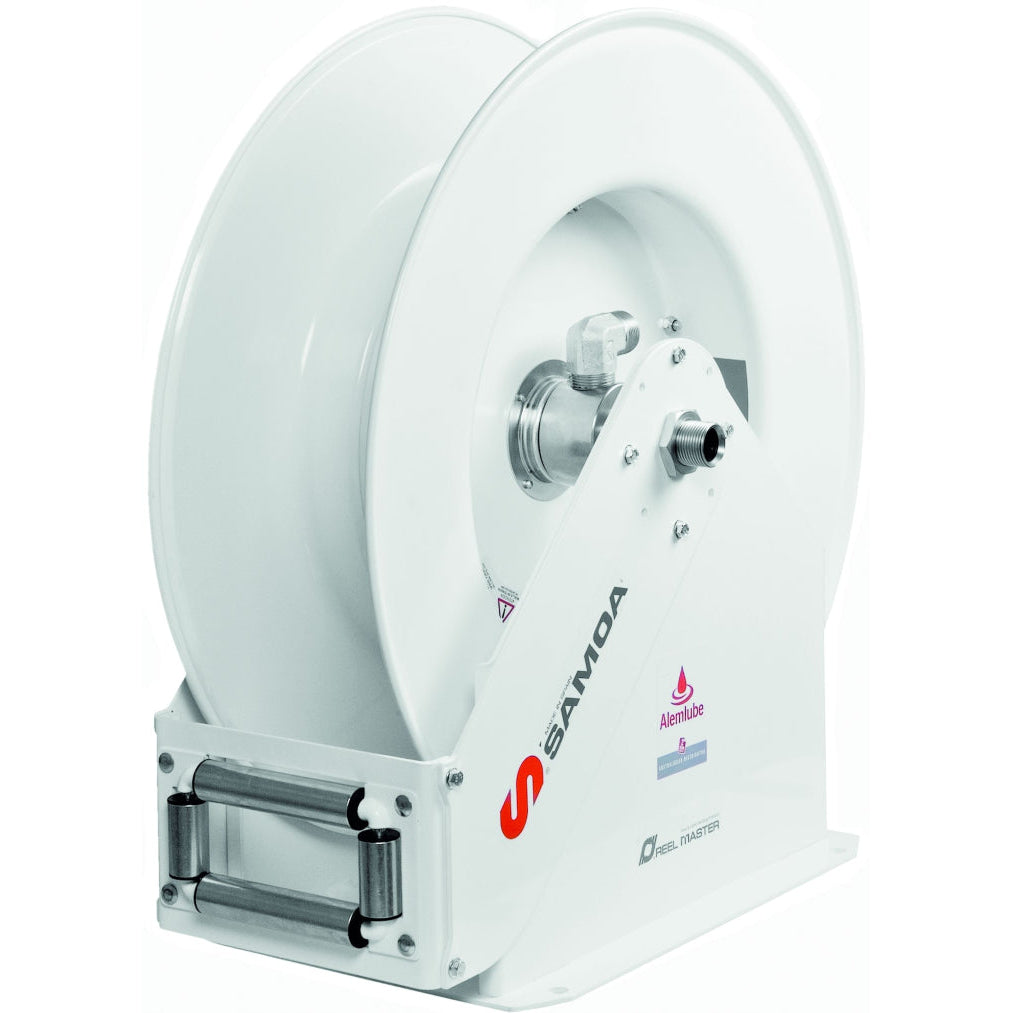

Samoa Oil Reel - Open , High Capacity 1", Bare 508925

New Samoa 1" heavy duty hose reel bare only. Can take up to 15m x 1", 25m x 3/4" or 30m x 1/2" R1 hose
Ideal for lube trucks or any industrial applications where fuel or oil needs to be transferred at high flow rates. ideal for water and air applications too
Rated to 1300 psi or 90 bar. Outlet thread: G 1" (F) Inlet thread: G 1" (F)
Heavy Duty very robust all metal construction. Manufactured using 4 mm steel gauge, the wide base arms, shaft and outlet arms form a very rigid and stable structure to stand the most demanding applications
Full port 1" nickel protected shaft and swivel for no flow restriction contributes to reduce fill time and to improve efficiency
Spool mounted on two permanent lubricated ball bearings to reduce torque load on power spring for smooth operation and durability
Large, effective radial latching area for easier operation
Zinc plated steel rollers for maximum durability
Epoxy powder coated for increased wear resistance
Outlet arm can be mounted in 6 different positions for maximum mounting versatility in any mounting position
